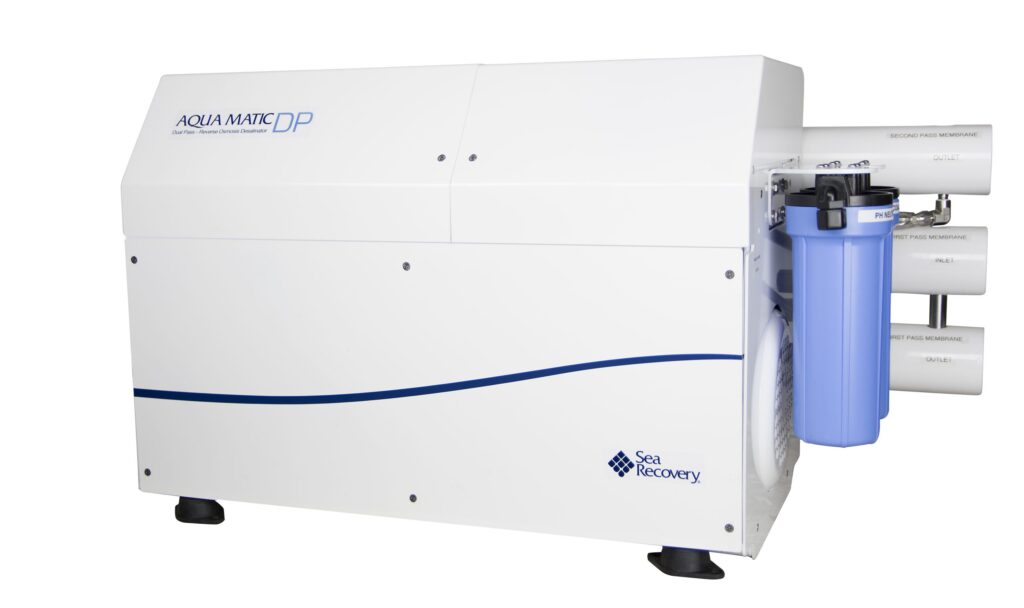

AQUA MATIC DUAL PASS

Description

(284-536 liters/hour)

Introducing our new and most revolutionary member of the Sea Recovery Family.
Specialized for those demanding ultra-pure and clean potable water.

Featuring:

  • Highest Capacity to Footprint/Weight Ratio
  • Up to 3400 GPD from Sea Water
  • Self-Contained, Plug and Play System
  • Titanium High Pressure Pump Provides an Extended Life Cycle with Salt Water
  • Compatibility and Quiet Operations
  • Flexible Installation and Easy to Operate
  • Globally Supported by a Network of More than 300 Dealers and Distributors

Manual for aqua Matic DP below

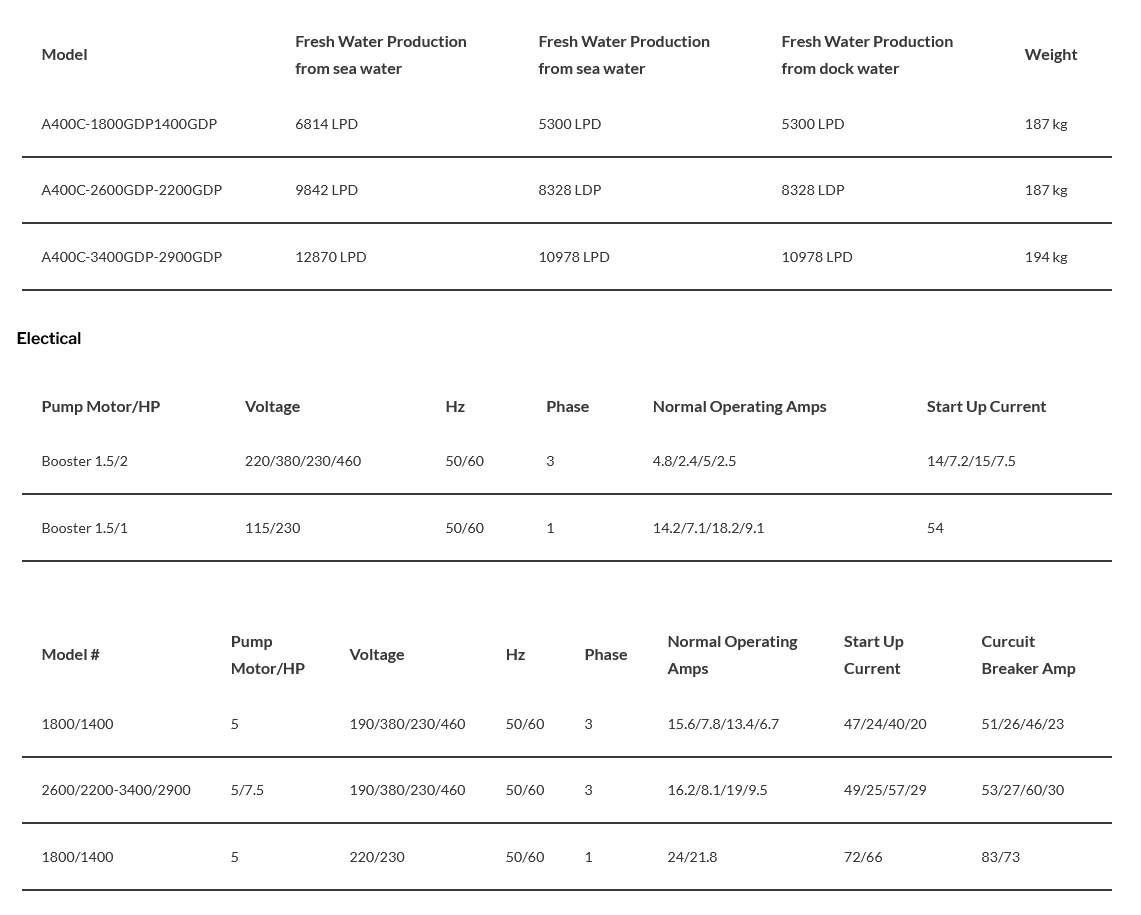

Specifications - Aqua Matic DP

Model Fresh Water Production
from sea water
Fresh Water Production
from sea water
Fresh Water Production
from dock water
Weight
A400C-1800GDP1400GDP 6814 LPD 5300 LPD 5300 LPD 187 kg
A400C-2600GDP-2200GDP 9842 LPD 8328 LDP 8328 LDP 187 kg
A400C-3400GDP-2900GDP 12870 LPD 10978 LPD 10978 LPD 194 kg

Electical

Pump Motor/HP Voltage Hz Phase Normal Operating Amps Start Up Current
Booster 1.5/2 220/380/230/460 50/60 3 4.8/2.4/5/2.5 14/7.2/15/7.5
Booster 1.5/1 115/230 50/60 1 14.2/7.1/18.2/9.1 54
Model # Pump Motor/HP Voltage Hz Phase Normal Operating Amps Start Up Current Curcuit Breaker Amp
1800/1400 5 190/380/230/460 50/60 3 15.6/7.8/13.4/6.7 47/24/40/20 51/26/46/23
2600/2200-3400/2900 5/7.5 190/380/230/460 50/60 3 16.2/8.1/19/9.5 49/25/57/29 53/27/60/30
1800/1400 5 220/230 50/60 1 24/21.8 72/66 83/73
