AQUA WHISPER MINI

Description

(27-117 liters/hour)

  • Smallest line of watermakers
  • Easy access to main components
  • Low AC power consumption
  • Maximum system weight is 68 kg

The perfect solution for the small workhorses at sea
The low-hassle Aqua Whisper Mini is engineered to be easy to install and have the capacity to produce enough water for up to 10 persons per day.
The Aqua Whisper mini is found in tug boats, crew transfer vessels with low water capacity, fishing vessels and cargo ships with up to 8-9 crew members.

Manual for aqua whisper below

Specifications - AQUA WHISPER MINI

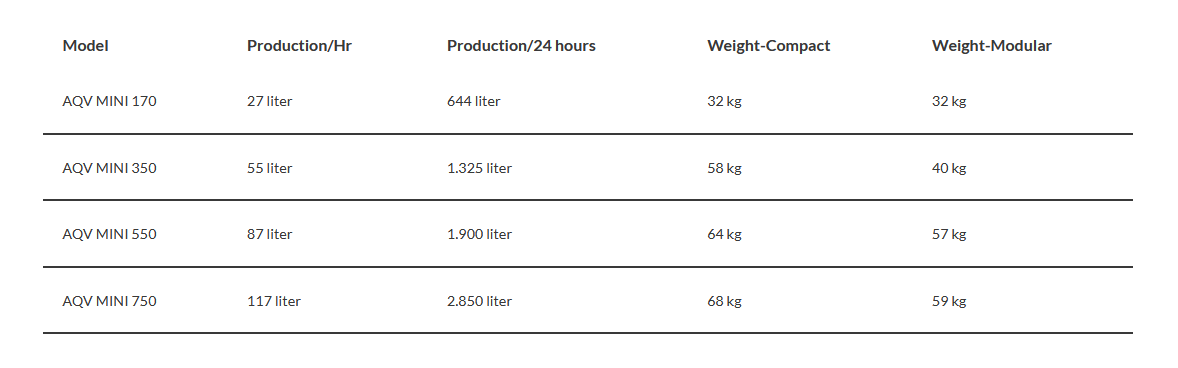

Model Production/Hr Production/24 hours Weight-Compact Weight-Modular
AQV MINI 170 27 liter 644 liter 32 kg 32 kg
AQV MINI 350 55 liter 1.325 liter 58 kg 40 kg
AQV MINI 550 87 liter 1.900 liter 64 kg 57 kg
AQV MINI 750 117 liter 2.850 liter 68 kg 59 kg

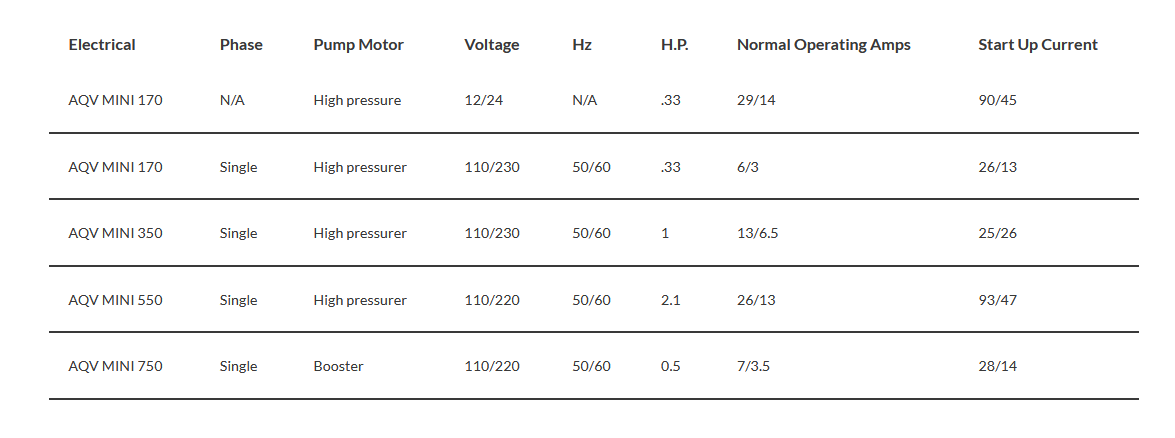

Electrical Phase Pump Motor Voltage Hz H.P. Normal Operating Amps Start Up Current
AQV MINI 170 N/A High pressure 12/24 N/A .33 29/14 90/45
AQV MINI 170 Single High pressurer 110/230 50/60 .33 6/3 26/13
AQV MINI 350 Single High pressurer 110/230 50/60 1 13/6.5 25/26
AQV MINI 550 Single High pressurer 110/220 50/60 2.1 26/13 93/47
AQV MINI 750 Single Booster 110/220 50/60 0.5 7/3.5 28/14

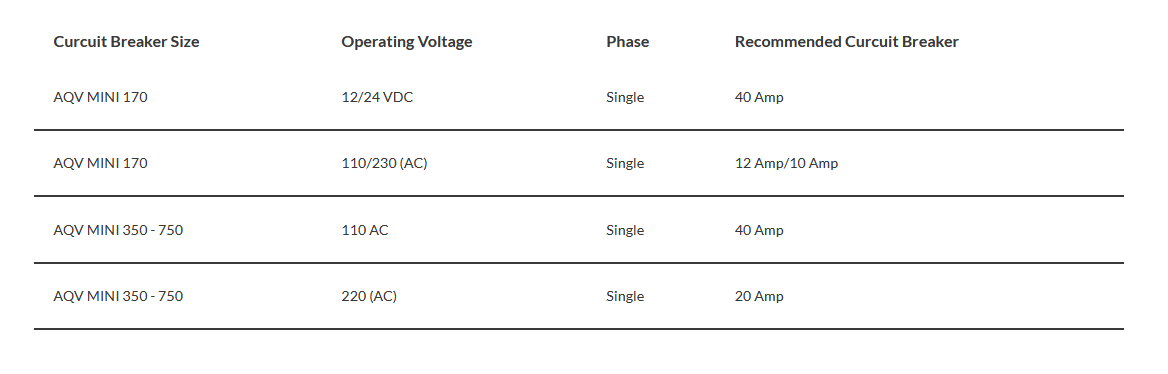

Curcuit Breaker Size Operating Voltage Phase Recommended Curcuit Breaker
AQV MINI 170 12/24 VDC Single 40 Amp
AQV MINI 170 110/230 (AC) Single 12 Amp/10 Amp
AQV MINI 350 - 750 110 AC Single 40 Amp
AQV MINI 350 - 750 220 (AC) Single 20 Amp
