AQUA WHISPER DX

Description

(27-117 liters/hour)

  • NMEA 2000 compliant
  • User adjusted operation
  • Digital menu
  • Quiet performance

Be completly in control

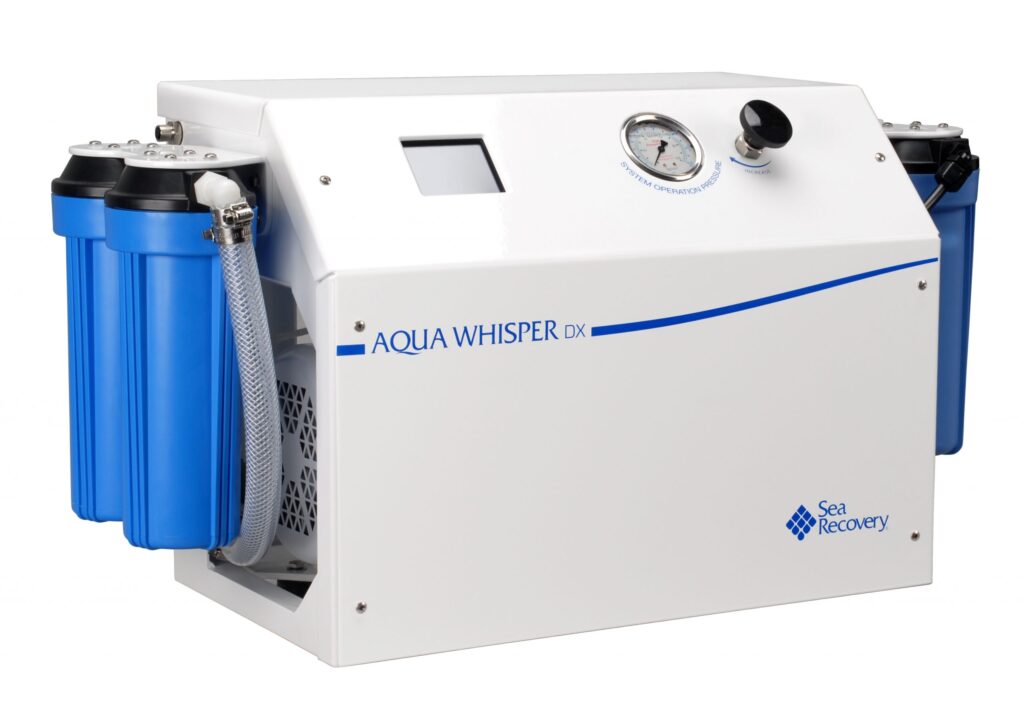

The Aqua Whisper DX grants boaters the freedom to monitor and regulate system capabilities. Made for the hands-on boater, the Aqua Whisper DX allows you to customize features and pressure settings with an advanced touch screen display. It’s ruggedness and reliability allows boaters to confidently command their water-maker in all parts of the world.

Manual for aqua whisper DX below

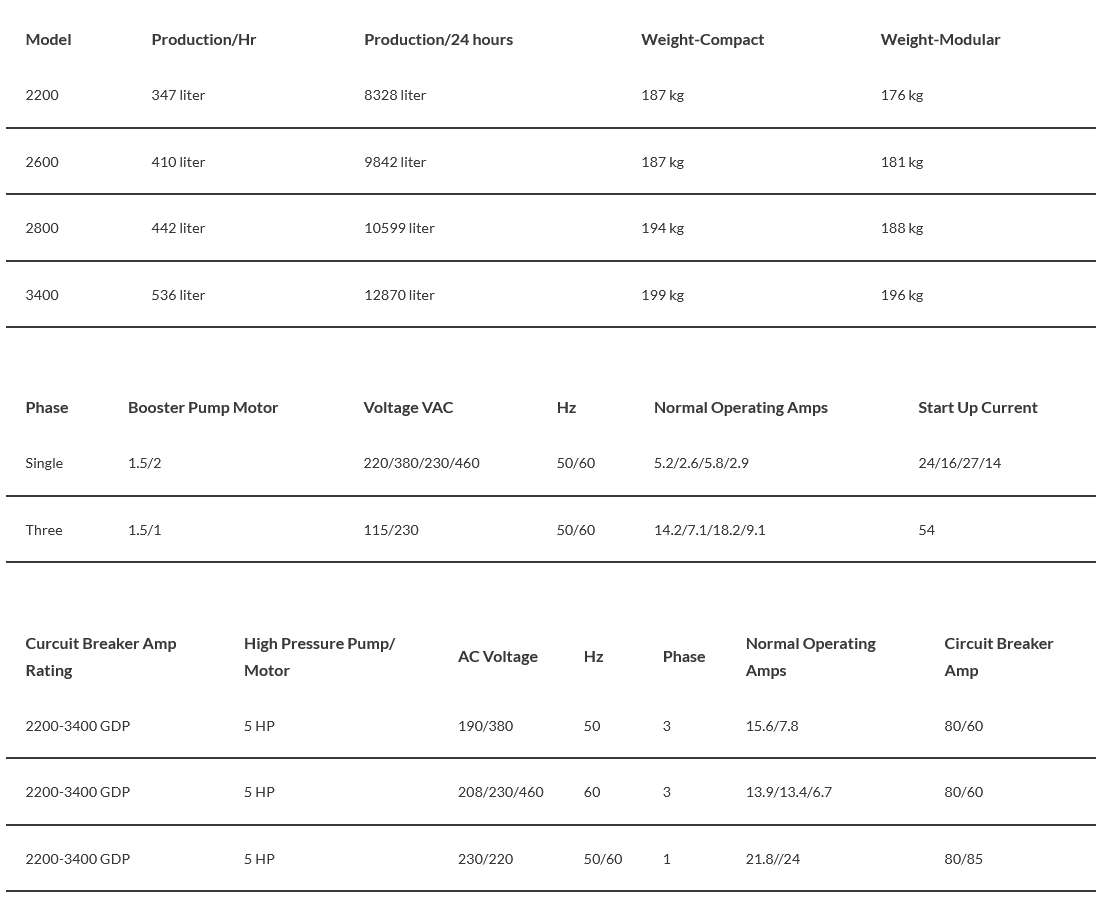

Specifications - AQUA WHISPER DX

Model Production/Hr Production/24 hours Weight-Compact Weight-Modular
2200 347 liter 8328 liter 187 kg 176 kg
2600 410 liter 9842 liter 187 kg 181 kg
2800 442 liter 10599 liter 194 kg 188 kg
3400 536 liter 12870 liter 199 kg 196 kg
Phase Booster Pump Motor Voltage VAC Hz Normal Operating Amps Start Up Current
Single 1.5/2 220/380/230/460 50/60 5.2/2.6/5.8/2.9 24/16/27/14
Three 1.5/1 115/230 50/60 14.2/7.1/18.2/9.1 54
Curcuit Breaker Amp Rating High Pressure Pump/Motor AC Voltage Hz Phase Normal Operating Amps Circuit Breaker Amp
2200-3400 GDP 5 HP 190/380 50 3 15.6/7.8 80/60
2200-3400 GDP 5 HP 208/230/460 60 3 13.9/13.4/6.7 80/60
2200-3400 GDP 5 HP 230/220 50/60 1 21.8//24 80/85
