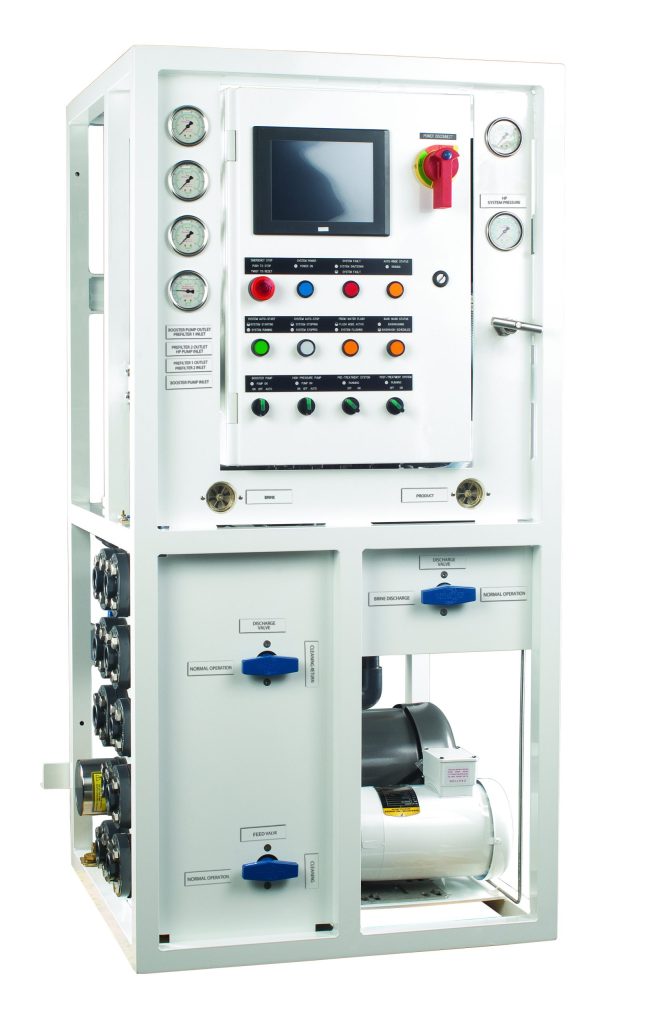

Coral Sea C3

Description

(583-1083 liters/hour)

Parker Sea Recovery brand of Reverse Osmosis Watermakers have been an industry standard for over 35 years.

The latest Coral Sea features:

  • Advanced, Intuitive Controller with 8” Color HMI
  • Hydro Cyclone Separator
  • Fresh Water Flush
  • Low Fouling Membranes
  • Integrated Booster Pump with VFD
  • Large Pre-filtration Cartridges for High Solids Retention
  • Compact Footprint

Additional Features:

  • Enhanced safety designed into the process and operation of the system
  • Easy to maintain
  • Vertical configuration standard – optional configurations voltages available upon request
  • Advanced digital control
  • Short manufacturing lead times
  • Oil free Pump
  • Large HMI interface
  • All Controls and Instruments for automatic, safe & reliable operations

Internal Options:

  • MODBUS communication
  • Custom Flanges available
  • External Options
  • External Strainer
  • Installation Kits
  • UV sterilizer
  • PH Neutralizer
  • Carbon Filter (Palatability Filter)
  • Remote Control
  • Self Cleaning 25 Mic Strainer
  • Chemical injection packages

Manual for aqua whisper below

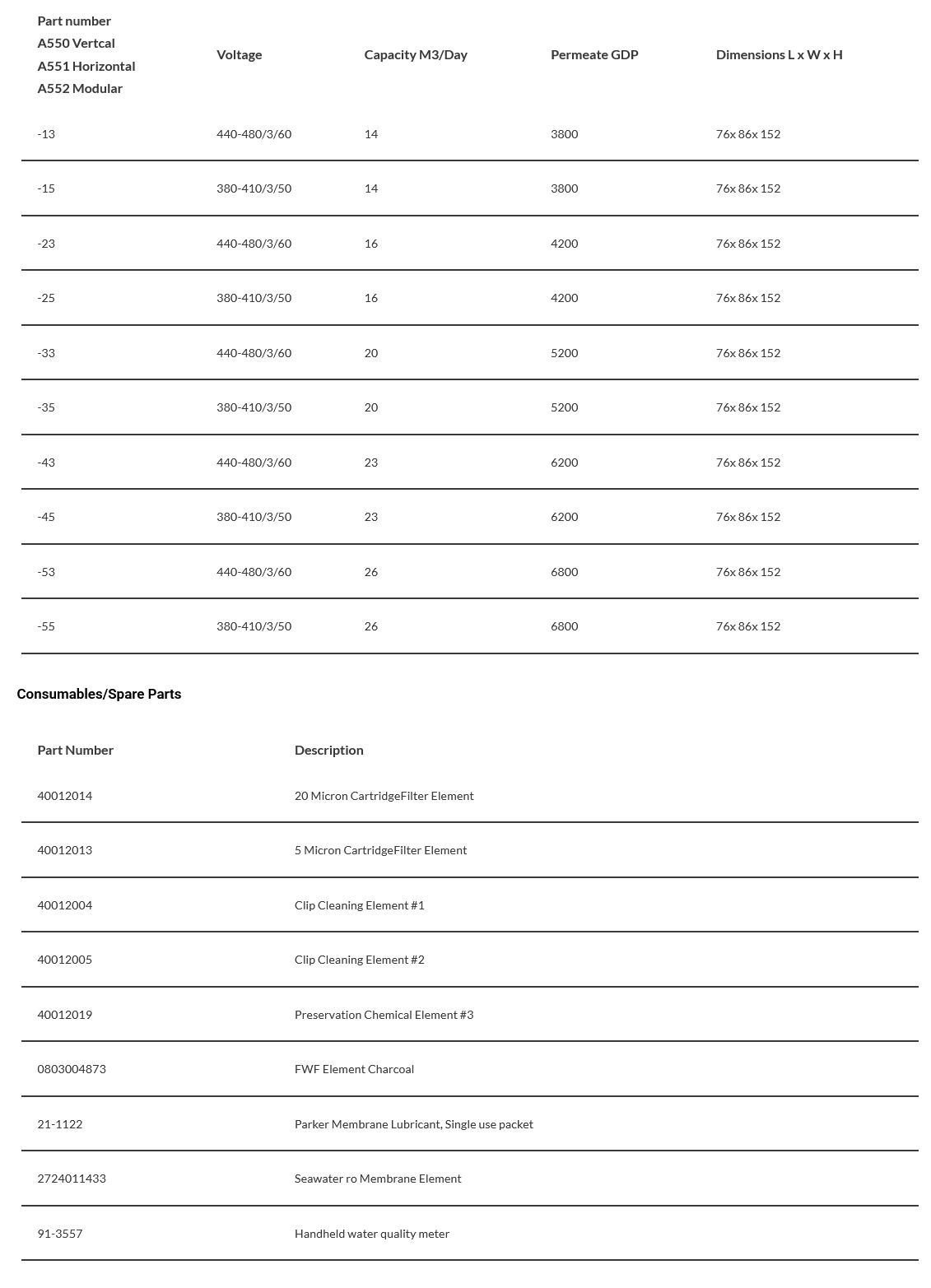

Specifications - Coral Sea C3

Part number
A550 Vertcal
A551 Horizontal
A552 Modular
Voltage Capacity M3/Day Permeate GDP Dimensions L x W x H
-13 440-480/3/60 14 3800 76x 86x 152
-15 380-410/3/50 14 3800 76x 86x 152
-23 440-480/3/60 16 4200 76x 86x 152
-25 380-410/3/50 16 4200 76x 86x 152
-33 440-480/3/60 20 5200 76x 86x 152
-35 380-410/3/50 20 5200 76x 86x 152
-43 440-480/3/60 23 6200 76x 86x 152
-45 380-410/3/50 23 6200 76x 86x 152
-53 440-480/3/60 26 6800 76x 86x 152
-55 380-410/3/50 26 6800 76x 86x 152

Consumables/Spare Parts

Part Number Description
40012014 20 Micron CartridgeFilter Element
40012013 5 Micron CartridgeFilter Element
40012004 Clip Cleaning Element #1
40012005 Clip Cleaning Element #2
40012019 Preservation Chemical Element #3
0803004873 FWF Element Charcoal
21-1122 Parker Membrane Lubricant, Single use packet
2724011433 Seawater ro Membrane Element
91-3557 Handheld water quality meter
